In modern manufacturing, selecting the right press capacity is critical for achieving both production efficiency and consistent product quality. Among the commonly used options, the 50 ton hydraulic press is considered a versatile solution that balances force, flexibility, and cost-effectiveness.
However, many manufacturers ask an important question before investing:
What exactly can a 50 ton hydraulic press do — and where are its limitations?
Understanding both the capabilities and constraints of a 50 ton hydraulic press helps ensure the machine is properly matched to the intended application, avoiding underperformance or unnecessary overspending.
What Is a 50 Ton Hydraulic Press?
A 50 ton hydraulic press is a machine capable of delivering up to 50 tons of pressing force through a hydraulic system.
Unlike mechanical presses, hydraulic systems allow precise control over:
- Pressure range
- Stroke length
- Speed of movement
- Bottom dead center position
This makes the 50 ton hydraulic press suitable for a wide range of applications where controlled force and repeatability are required.
Key Capabilities of a 50 Ton Hydraulic Press
A 50 ton hydraulic press is widely used across multiple industries due to its flexibility and stable performance.
1. Punching, Stamping, and Cutting
A 50 ton hydraulic press can handle:
- Metal punching
- Stamping operations
- Thin plate shearing
These applications are common in hardware manufacturing and sheet metal processing.
2. Press-Fit Assembly
One of the most important uses is assembly work, including:
- Fastener installation
- Component assembly
- Lock nut pressing
- Shaft and bushing insertion
Hydraulic systems provide smooth force, reducing damage to parts during assembly.
3. Forming and Shaping
A 50 ton hydraulic press can perform light to medium forming tasks such as:
- Bending
- Shaping metal parts
- Embossing or marking
Its adjustable pressure makes it suitable for different materials, including steel, aluminum, and certain non-metal materials.
4. Tubing Processing
Another practical capability includes:
- Tube enlarging
- Tube reducing
This expands its use beyond flat metal parts into tubing and component manufacturing.
5. Integration into Automated Systems
Modern 50 ton hydraulic presses can be used as:
- Standalone machines
- Part of automated production lines
They can be integrated with:
- Robotic arms
- Feeding systems
- PLC-controlled production
This makes them suitable for manufacturers transitioning toward automation.
Limitations of a 50 Ton Hydraulic Press
While highly versatile, a 50 ton hydraulic press is not suitable for all applications.
1. Limited for Heavy-Duty Forming
For operations such as:
- Thick steel forming
- Deep drawing
- Large structural components
Higher tonnage machines are required.
2. Not Designed for High-Speed Sheet Production
Compared to CNC punch presses:
- Hydraulic presses are slower
- They are not optimized for mass repetitive punching
CNC systems are better for high-speed sheet metal fabrication.
3. Workpiece Size Constraints
A 50 ton hydraulic press is typically designed for small to medium-sized parts. Large workpieces may exceed the machine’s table size, stroke range, or structural capacity.
4. Precision Depends on Setup
Although the machine allows precise adjustment, final accuracy depends on:
- Tooling quality
- Operator setup
- Parameter adjustment
Improper setup can reduce consistency.
When Is a 50 Ton Hydraulic Press the Right Choice?
A 50 ton hydraulic press is ideal when your production requires:
- Medium-force punching and forming
- Press-fit assembly operations
- Flexible production with multiple product types
- Stable, controllable pressing force
- Integration into semi-automated systems
It offers one of the best balances between capability, cost, and flexibility in general manufacturing.

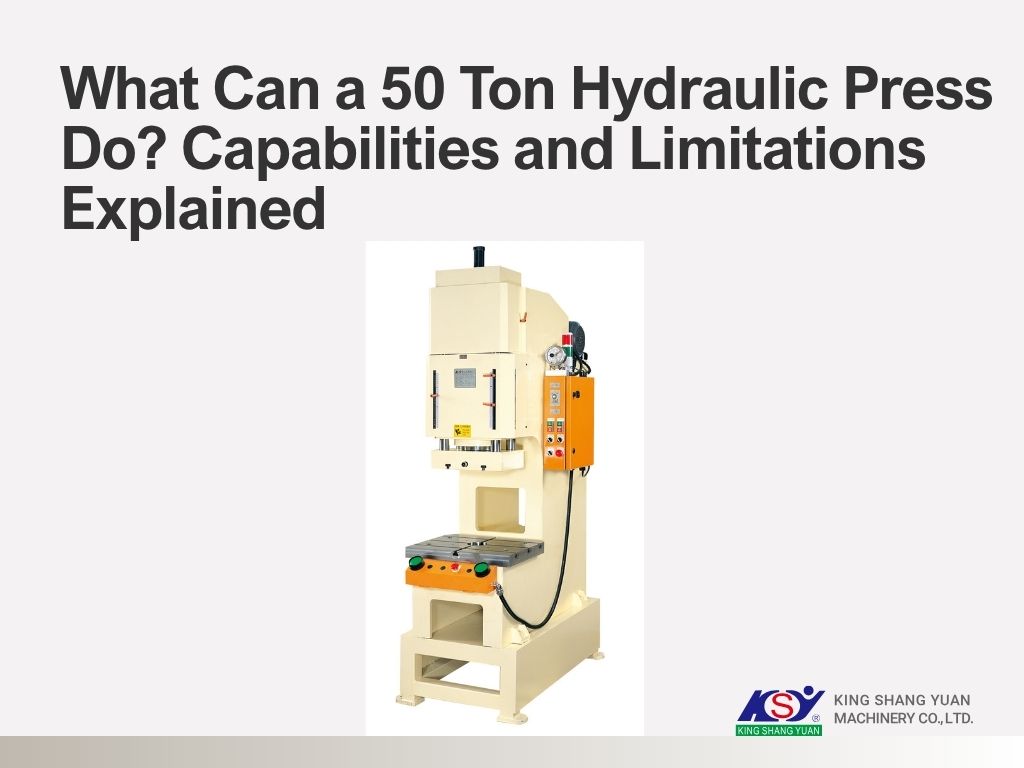

King Shang Yuan 50 Ton Hydraulic Press Solution — KSY-500H
From our experience at King Shang Yuan Machinery Co., Ltd., many manufacturers choose a 50 ton hydraulic press because it provides enough force for most applications while remaining easy to operate and integrate into production lines.
Our KSY-500H 50 ton hydraulic press is designed to support a wide range of industrial applications with practical features such as:
- Energy-saving hydraulic system with low-noise operation
- High-speed performance for improved productivity
- Easy adjustment of pressure, stroke, and bottom dead center position
- PLC automatic control with dual-button safety operation
- Safety design with punch head return when hands are released
- Oil temperature cooling system for stable long-term operation
The machine can be used either as a standalone unit or integrated into automated production systems, making it suitable for manufacturers aiming to improve efficiency while maintaining safety and precision.
Product page:
https://www.ksy-machine.com/en-US/p120-hydraulic-press-ksy-500h-50-ton
Conclusion
A 50 ton hydraulic press is a highly versatile and practical solution for a wide range of manufacturing processes, including punching, forming, assembly, and light metal processing.
While it may not replace higher-tonnage systems or high-speed CNC punching machines, it provides an excellent balance of force, flexibility, and efficiency for most medium-duty applications.
From our experience, choosing the right press is not about selecting the highest tonnage, but about matching the machine to your actual production needs.
If you are evaluating a 50 ton hydraulic press for your production line, we welcome you to explore the KSY-500H or contact our team to discuss your specific application requirements.
FAQ
What materials can a 50 ton hydraulic press handle?
A 50 ton hydraulic press can process materials such as mild steel, stainless steel, aluminum, and certain non-metal components, depending on thickness and tooling.
Is a 50 ton hydraulic press suitable for automation?
Yes. Many modern hydraulic presses can be integrated into automated systems with PLC control, robotic arms, and feeders.
How do I know if 50 ton is enough for my application?
It depends on material thickness, type of operation, and tooling. For heavier forming, a higher tonnage press may be required.
What industries commonly use 50 ton hydraulic presses?
Industries such as automotive, hardware manufacturing, electronics, and general metal processing frequently use 50 ton hydraulic presses.
